OVERVIEW

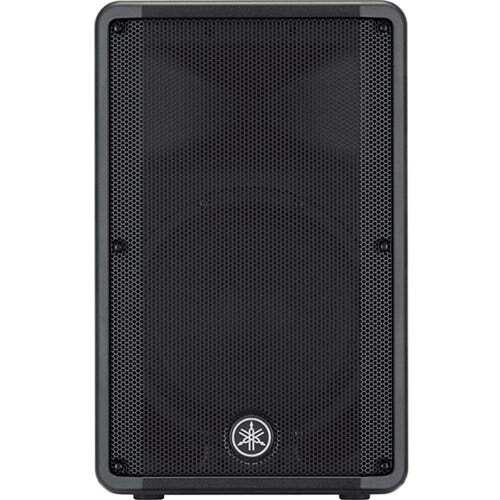

The CBR Series is a lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind. Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations. The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

Custom Designed Transducers and Wide-Dispersion Horn
CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.

HF Protection and Highly Responsive LF Unit
Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.

Rugged, Highly Portable Enclosure Design
CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.

Simple Connectivity
CBR Series speakers are equipped with one speakON jack and one 1/4" Phone jack that allow for fast and easy connectivity in both personal and professional environments.

Smart Enclosure Design for Floor Monitoring
The CBR Series speakers feature an optimized 50° wedge angle for floor monitoring. In addition, the CBR12 and CBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system for a larger and more defined sweet spot.

Rigging Points for Installation Applications
CBR loudspeakers come equipped with M8 rigging points, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

Functional Speaker Cover
Yamaha's newly designed functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road. *Functional Speaker Cover is not included.

FEATURESSpeaker configuration
  • Active/passive: Passive
  • Type: 2-Way full range
  • LF driver: 12"
  • MF driver: Not applicable
  • HF driver: 1.4"
Power amp (active)
  • Amplifier type: Not applicable
  • Wattage: Not applicable
  • Mixer/preamp: Not applicable
Power capacity (passive)
  • 8 Ohms program/peak: 350W / 700W
  • 4 Ohms program/peak: Info not available
  • Included power amp: No
Audio
  • Frequency response: 48Hz - 20kHz
  • Coverage pattern: 90° x 60°
  • Max SPL: 123 dB
Enclosure
  • Construction: Plastic
  • Width: 14.8"
  • Height: 23.7"
  • Depth: 13.7"
  • Weight: 30.6 lb.
Inputs
  • XLR: Not applicable
  • TRS: 1
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: 1
Output/thru
  • XLR: Not applicable
  • TRS: Not applicable
  • RCA: Not applicable
  • SPEAKON: Not applicable
SKU CBR12
Brand YAMAHA
Shipping Weight 15.0000kg
Shipping Width 0.605m
Shipping Height 0.355m
Shipping Length 0.380m
