SPECIFICATIONS
Sampling Frequency
44.1 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Recording/Playback
Number of Track: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type
57 Patterns x 2 Variations
Rhythm Kit
16 types
Effect
LOOP FX (only for loop tracks)
Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK
Reverb (only for rhythm part)
Memory
99
Nominal Input Level
MIC IN:-40 dBu (variable)
INST IN A/MONO、B: -10 dBu
Maximum Input Level
MIC IN:+8 dBu
INST IN A/MONO, B: +8 dBu
Input Impedance
MIC IN: 4 k ohms
INST IN A/MONO, B: 1 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +8 dBu
Output Impedance
OUTPUT A/MONO, B: 1 k ohm
Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
Buffered bypass

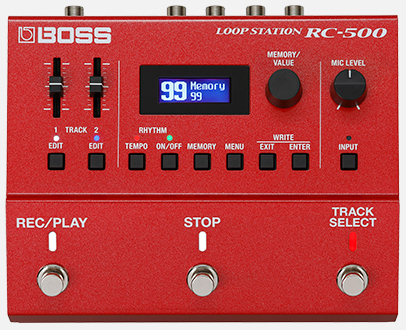

Controls
REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button
Display
Graphic LCD (96 x 32 dots, RGB backlit LCD)
Connectors
INST IN A/MONO, B jacks: 1/4-inch phone type
MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB port: USB micro B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 4
AC adaptor (PSA-S series: sold separately)
Current Draw
330 mA (with phantom power)
240 mA (without phantom power)
Expected battery life under continuous use
Alkaline: Approx. 3.5 hours (without phantom power)
Approx. 2 hours (with phantom power)
*These figures will vary depending on the actual conditions of use.
Accessories
Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (AA, LR6) x 4
Rubber foot x 4
Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35
SIZE AND WEIGHT
Width
170 mm
6-3/4 inches
Depth
138 mm
5-7/16 inches
Height (including rubber foot)
62 mm
2-1/2 inches
Weight (including battery)
950 g
2.1 lb
SKU 16884
Brand BOSS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.300m
Shipping Cubic 0.013500000m3
